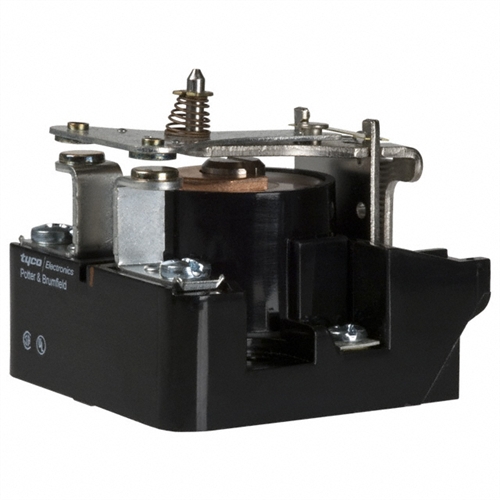

Home > Relays, Switches, Sensors > Relays > General Purpose > Power Relay; PRD-3DY0-12
	Our Price: $50.00 Price Per: Each Quantity in Stock:21 Product Code: PRD3DY012 Qty:

Description Specifications   General Purpose Relay with a SPST-NO Contact Form with a 25A Contact Current and a 12VDC Coil. ADDITIONAL INFORMATION Relay Function: General Purpose Coil Style: Non Latching Coil Voltage Rate: 12 VDC Coil Current: 169 mA Contact Form: SPST-NO Contact Current Rating: 25 A Contact Material: Silver Coil Power: 2 W Coil Resistance: 71 Ohms Turn On Voltage Rate (max): 9 VDC Turn Off Voltage Rate (min): 1.2 VDC Switching Voltage: 277 VAC - Nom Release Time: 20 ms Operate Time: 40 ms Mounting Style: Chassis Mount Termination Type: Screw Terminal RoHS Compliance: Yes Max. Operating Temperature: 80 Degrees Celsius Min. Operating Temperature: -55 Degrees Celsius Related Items Magnecraft SE Relay; Hermetic Ice Cube; 4PDT; 3A; 24 VDC; KHS17D1124 (782XDX1D10-24D) Power Relay; KRP-5AG-120 Power Relay; PRD-11DG0-24 Power Relay; R10-E1W4-V2.5K Our Price: $91.95 Our Price: $89.19 Our Price: $56.89 Our Price: $94.98 Power Relay; T92S11A22-120 Power Relay; PRD-11AY0-24 Power Relay; KRPA-14AN-24 Power Relay; T92S7A22-120 Our Price: $21.12 Our Price: $64.10 Our Price: $56.98 Our Price: $15.89
