Home > Relays, Switches, Sensors > Relays > General Purpose > Power Relay; PRD-11AG0-120
	Our Price: $110.00 Price Per: Each Quantity in Stock:1 Product Code: PRD11AG0120 Qty:

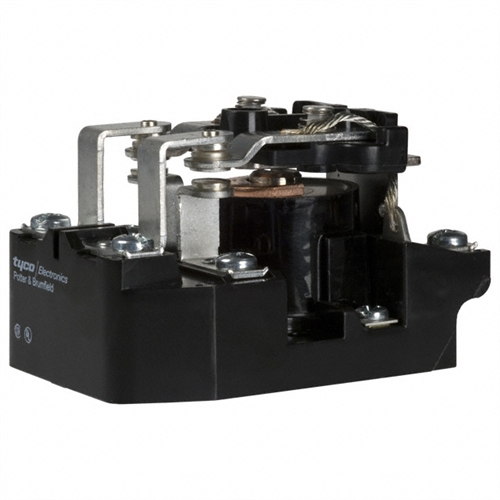

Description Specifications   General Purpose Relay with a DPDT Contact Form, a 30A Contact Current and a 120VAC Coil. ADDITIONAL INFORMATION Relay Function: General Purpose Coil Style: Non Latching Coil Voltage Rate: 120 VAC Coil Current: 85 mA Contact Form: DPDT (2 Form C) Contact Current Rating: 30 A Contact Material: Silver Cadmium Oxide Coil Power: 9.8 VA Resistance: 290 Ohms Turn On Voltage Rate (max): 102 VAC Turn Off Voltage Rate (min): 12 VAC Switching Voltage: 240 VAC - MAX Release Time: 20 ms Operate Time: 40 ms Mounting Style: Chassis Mount Termination Type: Screw Terminal Max. Operating Temperature: 45 Degrees Celsius Min. Operating Temperature: -55 Degrees Celsius RoHS Compliance: Yes Accessories Relay Cover; 35D013 Our Price: $31.43 Related Items Power Relay; PRD-11AG0-240 General Purpose Relay; K10 Series; DPDT; K10P-11D15-12 Magnecraft SE Relay; 11 Pin; 3PDT; 12A; 24VDC; KR14DGE24 (750XCXH-24D) Power Relay; PRD-11AH0-120 Our Price: $77.00 Our Price: $20.19 Our Price: $152.85 Our Price: $72.49 General Purpose Relay; K10 Series; DPDT; K10P-11A15-24 Power Relay; T9A Series; SPDT; T9AP5D52-24 Magnecraft SE Relay; Hermetic Ice Cube Relay ; 4PDT; 3A; 120VAC Coil; KHS17A11120 (782XDXH10-120A) Power Relay; PRD-11DG0-24 Our Price: $20.95 Our Price: $3.89 Our Price: $149.00 Our Price: $56.89
