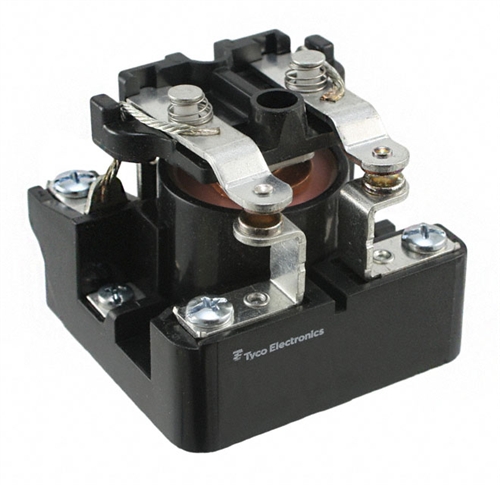

Home > Relays, Switches, Sensors > Relays > General Purpose > Power Relay; PRD-7AG0-120
	Our Price: $68.98 Price Per: Each Quantity in Stock:5 Product Code: PRD7AG0120 Qty:

Description Specifications   General Purpose Relay with a DPST-NO Contact Form, a 30A Contact Current and a 120VAC Coil. ADDITIONAL INFORMATION Relay Function: General Purpose Coil Style: Non Latching Coil Voltage Rating: 120 VAC Coil Current: 85 mA Contact Form: DPST-NO (2 Form A) Contact Current Rating: 30 A Contact Material: Silver Cadmium Oxide Coil Power: 9.8 VA Coil Resistance: 290 Ohms Turn On Voltage Rate (max): 102 VAC Turn Off Voltage Rate (min): 12 VAC Switching Voltage: 240 VAC - Nom Release Time: 20 ms Operate Time: 40 ms Mounting Style: Chassis Mount Termination Type: Screw Terminal Max. Operating Temperature: 45 Degrees Celsius Min. Operating Temperature: -55 Degrees Celsius RoHS Compliance: Yes Related Items Magnecraft SE Relay; General Purpose; 8 Pin; DPDT; 12A; 24 VDC; KR11DGE24 (750XBXH-24D) Power Relay; T92S7A22-120 Power Relay; PRD-3DY0-24 Magnecraft SE Relays; 4PDT; 3A; 24VAC; KHS17A1124 (782XDXDXH10-24A) Our Price: $141.75 Our Price: $15.89 Our Price: $34.89 Our Price: $69.00 General Purpose Relay; T92S7D22-24 Power Relay; PRD-11DH0-24 Power Relay; KRPA-14DN-24 RELAY-DPDT 10A 110VDC; R14-11D10-110 Our Price: $16.19 Our Price: $58.32 Our Price: $26.29 Our Price: $10.96
