Home > Relays, Switches, Sensors > Relays > General Purpose > Power Relay; PRD-5AY0-120
	Our Price: $48.89 Price Per: Each Quantity in Stock:7 Product Code: PRD5AY0120 Qty:

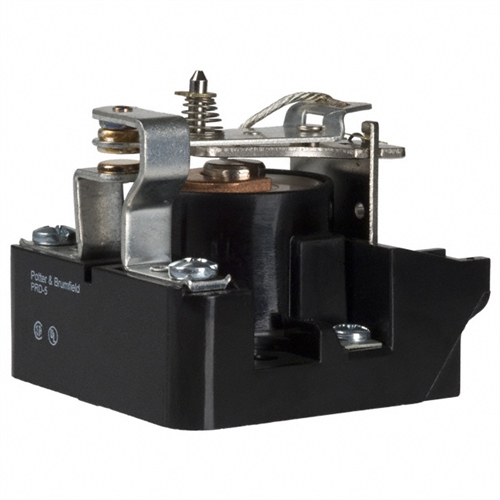

Description Specifications   General Purpose Relay with a SPDT Contact Form, a 25A Contact Current and a 120VAC Coil. ADDITIONAL INFORMATION Relay Function: General Purpose Coil Style: Non Latching Coil Voltage Rating: 120 VAC Coil Current: 85 mA Contact Form: SPDT (1 Form C) Contact Current Rating: 25 A Contact Material: Silver Coil Power: 9.8 VA Coil Resistance: 290 Ohms Turn On Voltage Rate (max): 102 VAC Turn Off Voltage Rate (min): 12 VAC Switching Voltage: 277 VAC - MAX Release Time: 20 ms Operate Time: 40 ms Mounting Style: Chassis Mount Termination Type: Screw Terminal Max. Operating Temperature: 45 Degrees Celsius Min. Operating Temperature: -55 Degrees Celsius RoHS Compliance: Yes Related Items PRD-5AY0-6 General Purpose Relay; 110VDC; 15A; DPDT; K10P-11D15-110 Power Relay; KRPA-11AN-120 Power Relay; PRD-11AY0-24 Our Price: $30.00 Our Price: $17.89 Our Price: $28.19 Our Price: $64.10 General Purpose Relay; K10 Series; DPDT; K10P-11D15-12 Power Relay; KRPA-11AG-120 PRD-5DY0-6 NTE RELAY DPDT 10A 12VDC; R02-11D10-12 Our Price: $20.19 Our Price: $29.49 Our Price: $50.00 Our Price: $18.27
