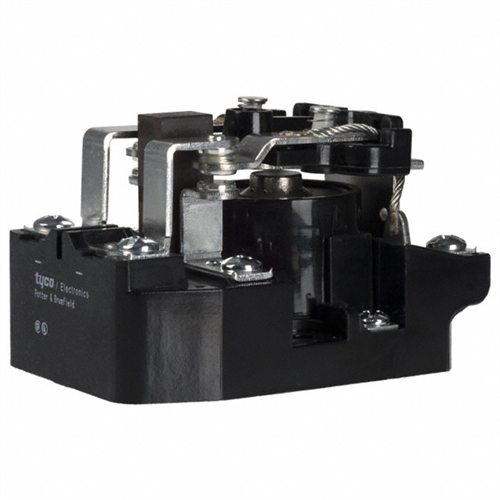

Home > Relays, Switches, Sensors > Relays > General Purpose > Power Relay; PRD-11DH0-24
	Our Price: $58.32 Price Per: Each Quantity in Stock:3 Product Code: PRD11DH024 Qty:

Description Specifications   General Purpose Relay with a DPDT Contact Form, a 20A Contact Current and a 24VDC Coil. ADDITIONAL INFORMATION Relay Function: General Purpose Coil Style: Non Latching Coil Voltage Rating: 24 VDC Coil Current: 84 mA Contact Form: DPDT (2 Form C) Contact Current Rate: 20 A Contact Material: Silver Coil Power: 2 W Resistance: 288 Ohms Turn On Voltage Rate (max): 18 VDC Turn Off Voltage Rate (min): 2.4 VDC Switching Voltage: 125 VDC - Nom Release Time: 20 ms Operate Time: 40 ms Mounting Style: Chassis Mount Termination Type: Screw Terminal Max. Operating Temperature: 80 Degrees Celsius Min. Operating Temperature: -55 Degrees Celsius Lead Free: Yes RoHS Compliance: Yes Accessories Relay Cover; 35D013 Our Price: $31.43 Related Items Power Relay; PRD-3DY0-12 General Purpose Relay; KHAU-17D11-48 Power Relay; T9A Series; SPDT; T9AP5D52-24 Power Relay; PRD-3DY0-24 Our Price: $50.00 Our Price: $18.89 Our Price: $3.89 Our Price: $34.89 Power Relay; KHAU-17D11-110 Power Relay; PRD-11AH0-120 Magnecraft SE Relay; General Purpose; 8 Pin; DPDT; 12A; 24 VDC; KR11DGE24 (750XBXH-24D) Power Relay; PRD-7AG0-120 Our Price: $25.19 Our Price: $72.49 Our Price: $141.75 Our Price: $68.98
