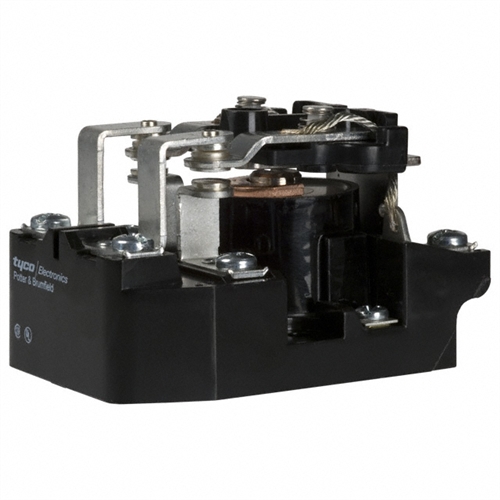

Home > Relays, Switches, Sensors > Relays > General Purpose > Power Relay; PRD-11AY0-480
	Our Price: $90.90 Price Per: Each Quantity in Stock:1 Product Code: PRD11AY0480 Qty:

Description Specifications   General Purpose Relay with a DPDT Contact Form, a 25A Contact Current and a 480VAC Coil. ADDITIONAL INFORMATION Relay Function: General Purpose Coil Style: Non Latching Coil Voltage Rating: 480 VAC Coil Current: 22 mA Contact Form: DPDT (2 Form C) Contact Current Rating: 25 A Contact Material: Silver Coil Power: 9.8 VA Resistance: 4.5 kOhms Turn On Voltage Rate (max): 408 VAC Turn Off Voltage Rate (min): 48 VAC Switching Voltage: 240 VAC - Nom Release Time: 20 ms Operate Time: 40 ms Mount: Chassis Mount Termination Type: Screw Terminal Max. Operating Temperature: 45 Degrees Celsius Min. Operating Temperature: -55 Degrees Celsius RoHS Compliance: Yes Accessories Relay Cover; 35D013 Our Price: $31.43 Related Items RELAY-DPDT 10A 110VDC; R14-11D10-110 General Purpose Relay; K10 Series: DPDT; K10P-11A15-120 Magnecraft SE Relay; Electrometic Ice Cube Relay; 4PDT; 5A; 24VDC Coil; KHS17D1224 (782XDXH21-24D) RELAY-12AMP-DC-12V; R46-5D12-12 Our Price: $10.96 Our Price: $16.79 Our Price: $143.21 Our Price: $3.59 Power Relay; PRD-7AG0-120 Power Relay; T92S11D22-12 Signal Relay; R10-E1Z2-115V Power Relay; PRD-11AH0-120 Our Price: $68.98 Our Price: $22.79 Our Price: $43.29 Our Price: $72.49
