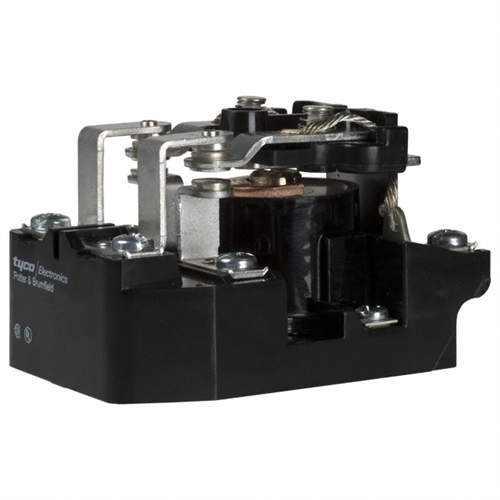

Home > Relays, Switches, Sensors > Relays > General Purpose > Power Relay; PRD-11AY0-120
Alternative Views:	Our Price: $74.59 Price Per: Each Quantity in Stock:1 Product Code: PRD11AY0120 Qty:

Description Specifications   General Purpose Relay with a DPDT Contact Form, a 25A Contact Current and a 120VAC Coil. ADDITIONAL INFORMATION Relay Function: General Purpose Coil Style: Non Latching Coil Voltage Rate: 120 VAC Coil Current: 85 mA Contact Form: DPDT (2 Form C) Contact Current Rating: 25 A Contact Material: Silver Coil Power: 9.8 VA Resistance: 290 Ohms Turn On Voltage Rate (max): 102 VAC Turn Off Voltage Rate (min): 12 VAC Switching Voltage: 240 VAC - MAX Release Time: 20 ms Operate Time: 40 ms Termination Type: Screw Terminal Mounting Style: Chassis Mount Max. Operating Temperature: 45 Degrees Celsius Min. Operating Temperature: -55 Degrees Celsius RoHS Compliance: Yes Accessories Relay Cover; 35D013 Our Price: $31.43 Related Items Magnecraft SE Relays; 4PDT; 3A; 24VAC; KHS17A1124 (782XDXDXH10-24A) RELAY-DPDT 10A 110VDC; R14-11D10-110 Power Relay; KRPA-14AN-120 Magnecraft SE Relays; Hermetic Ice Cube Relay; 4PDT; 3 Amp; 110/12 VDC; KHS17D11110 (782XDXH10-110D) Our Price: $69.00 Our Price: $10.96 Our Price: $31.99 Our Price: $100.00 Power Relay; T9A Series; SPDT; T9AP5D52-24 PRD-5AY0-208 Power Relays; KRPA-11AY-120 Magnecraft SE Relay; Electrometic Ice Cube Relay; 4PDT; 5A; 24VDC Coil; KHS17D1224 (782XDXH21-24D) Our Price: $3.89 Our Price: $79.95 Our Price: $24.98 Our Price: $143.21
