Home > Relays, Switches, Sensors > Relays > General Purpose > Power Relay; PRD-11AH0-120
	Our Price: $72.49 Price Per: Each Quantity in Stock:1 Product Code: PRD11AH0120 Qty:

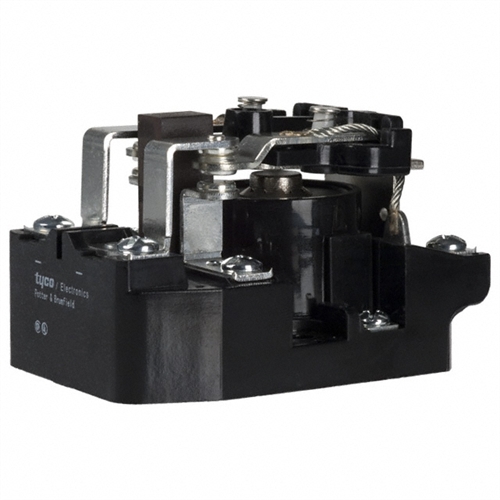

Description Specifications   General Purpose Relay with a DPDT Contact Form, a 20A Current Rating and a 120VAC Coil. ADDITIONAL INFORMATION Relay Function: General Purpose Coil Style: Non Latching Coil Voltage Rating: 120 VAC Coil Current: 85 mA Contact Form: DPDT (2 Form C) Contact Current Rate: 20 A Contact Material: Silver Coil Power: 9.8 VA Resistance: 290 Ohms Turn On Voltage Rate (max): 102 VAC Turn Off Voltage Rate (min): 12 VAC Switching Voltage: 125 VDC - NOM Release Time: 20 ms Operate Time: 40 ms Mount: Chassis Mount Termination Type: Screw Terminal Max. Operating Temperature: 45 Degrees Celsius Min. Operating Temperature: -55 Degrees Celsius Coil Power: 9.8 VA Resistance: 290 Ohms RoHS Compliance: Yes Accessories Relay Cover; 35D013 Our Price: $31.43 Related Items General Purpose Relay; T92S7A12-240 Power Relay; PRD-3DY0-24 Power Relay; KRPA11AG12 Power Relay; T92S7A22-120 Our Price: $13.59 Our Price: $34.89 Our Price: $19.49 Our Price: $15.89 PRD-11DH0-12 Magnecraft SE Relay; Hermetic Ice Cube Relays; 8 Pin DPDT; 12 A; 12VDC; KR11DGE12 (750XBXH-12D) Power Relay; KRPA-14DG-24 NTE RELAY DPDT 10A 12VDC; R02-11D10-12 Our Price: $52.25 Our Price: $183.59 Our Price: $26.29 Our Price: $18.27
