EJ664 - Hammond Mfg - Electrical Enclosure

Home > Networking > Cables & Cable Management > Boxes & Cabinets >

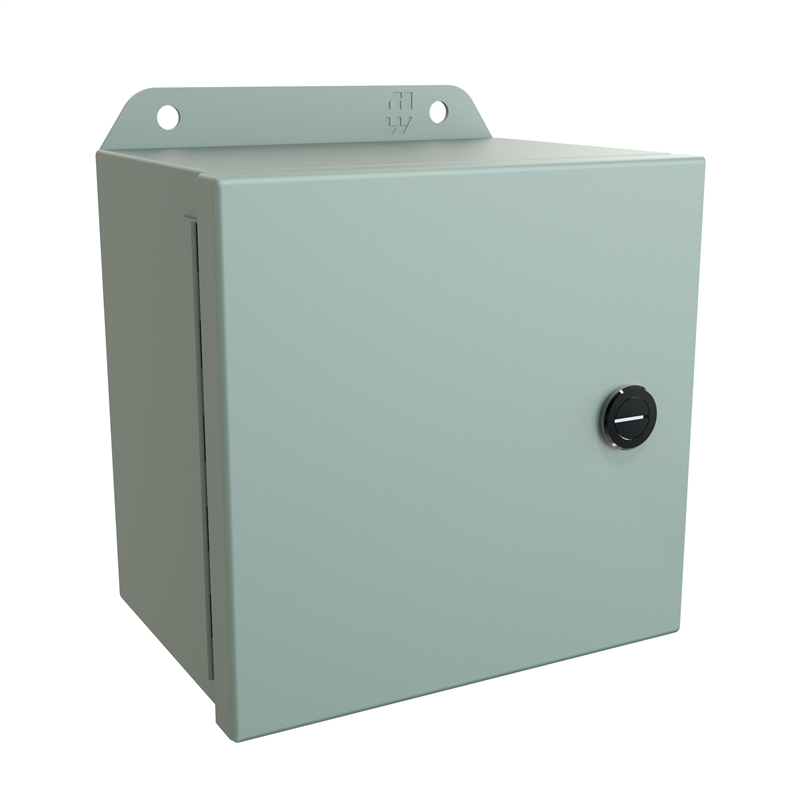

EJ664, N4,12 Eclipse Junior Enclosure w/ Panel - 6 x 6 x 4

Our Price: $126.72

Price Per: Each

Quantity in Stock:2

Product Code: EJ664

Qty:

Description

Specifications

6in x 6in x 4in Nema 4 Eclipse Junior Enclosure w/ Panel is Designed to enclose electrical and/or electronic equipment and protect against harsh, industrial environments.
Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures. Continuously hinged cover has 304 stainless steel hinges and provides 180° opening. Quarter turn latches formed from black zinc diecast. Galvanized Inner Panel.

Inner Panel Dimensions: 4.88" x 4.88"
Complies with NEMA Type 3R, 4, 12 and 13; IEC 60529, IP66

Features

Body and cover are formed from 16 gauge steel.
Smooth, continuously welded seams without knockouts, cutouts, or holes.
Formed lip on enclosure to exclude flowing liquids and contaminants.
14 gauge welded brackets provide for enclosure mounting.
Continuously hinged cover has 304 stainless steel hinges and provides 180° opening.
Door latches feature the added safety of quarter turn slot requiring use of tool for opening.
Quarter turn latches formed from black zinc diecast.
Seamless poured-in place gasket.
Models larger than 4"x4" include a removable 14 gauge galvanized inner panel.
Internal threaded weld studs are provided for mounting inner panels.
A bonding stud is provided on the door and a grounding stud is provided on the enclosure.
Grounding and panel mounting hardware provided.
